AAG skydome NO FRAME AAG skydome NO FRAME



AAG wing overview and technical data

Reaction to fire Class
Heat transfer coefficient - glazing Ut
Heat transfer coefficient - skydome withou upstand Ur
Heat transfer coefficient - skydome with upstand Urc
Upward load UL
Downward load DL
Resistance to pendulum impact 1B1
Air permeability AP
Sound transmission loss Rw
Watertightness Comply
Hard body impact Comply
Radiation properties tD65 /g









The comfortable AAG triple glass NO FRAME skydomes with new Al profile, superb modern design and excellent thermal insulation properties. The advantage is an unrivaled design using insulating triple safety glass with an overlap, around the perimeter with black enamel and a ground edge. The lower frame is made of aluminum in the matte shade RAL 7021 anthracite. AAG skylights meet the highest requirements for building fillings. The outer glass is tempered, the bottom is laminated for safety (in case of glass breakage, the shards will remain on the foil). AAG skylights are used for lighting and daily ventilation. Installation is suitable for flat roofs and roofs with an inclination of up to 35°.
  • Comfortable glazing NO FRAME
    • skylight filling - insulated safety triple glazing around the perimeter with a darkened overlap and a ground edge
    Reaction to fire:
    with upstand from steel = A1, with upstand from PVC = E
    Heat transfer coefficient Ut/Ur/Urc = 0,6/0,93/0,92(1,2) W/m2.K
    Radiation properties (tD65/g= 73%/0,55
    UL = 1500, DL = 2500, 1B1, AP 4, Rw = 42 dB
    download technical sheets
    download technical drawings

Important informationí:

Any breakage of the glass after the customer has received the delivery of the skydome, whether during onward transport, storage, on the transport frame, during assembly and handling or installation on site, or breakage of the glass due to thermal shock or climatic fracture etc. are not subject to a claim and cannot be accepted.

To prevent dirt settling on glazing, we recommend to mount the glass glazing in the angle of min. 5°.

Because of snow overload (there is a danger of glazing collapsing and leaking) of flat glass and flat polycarbonate (PC) glazing, it is necessary to regularly clean snow from the skydome surface.

Follow the instructions for skydome snow load measurements.

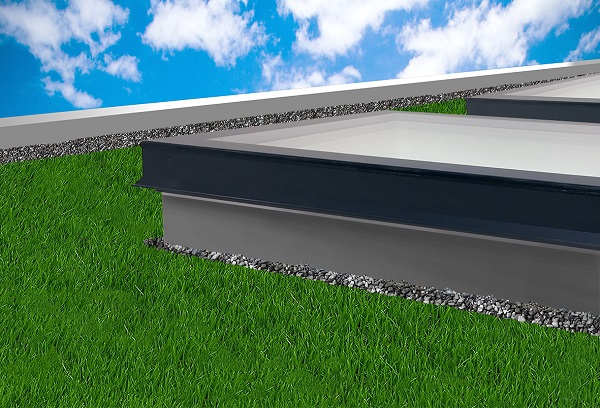

světlíky montáž noframe

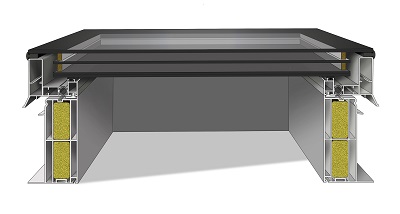

Kresba 1 2020 manžeta 1
